REMOVAL AND INSTALLATION <4N1>


Pre-removal Operation
  • Engine Upper Cover Removal (Refer to GROUP 13D - Fuel Injector ).
  • Drive Belt Removal (Refer to GROUP 11E - Crankshaft Pulley ).

 Post-installation Operation
  • Drive Belt Installation (Refer to GROUP 11E - Crankshaft Pulley ).
  • Engine Upper Cover Installation (Refer to GROUP 13D - Fuel Injector ).
  • Drive Belt Tension Check (Refer to GROUP 11E - On-vehicle Service, Drive Belt Tension Check ).

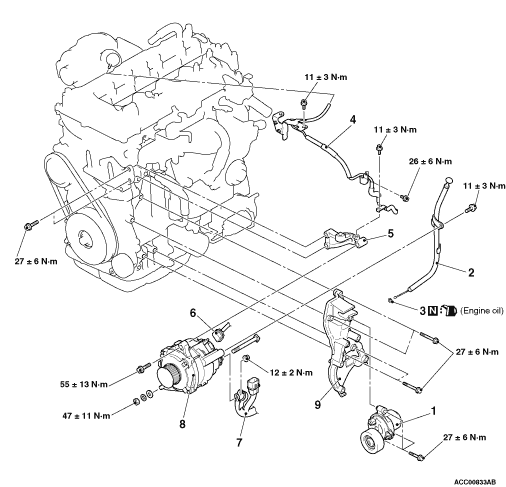

Removal steps


1.
 Drive belt auto-tensioner


2.
 Engine oil level gauge


3.
 O-ring


4.
 Emission control hose and pipe assembly


5.
 Alternator upper bracket


6.
 Alternator connector


7.
 Alternator terminal
<<A>>
8.
 Alternator assembly
<<B>>
·
 A/C compressor and clutch assembly (Refer to GROUP 55 - Compressor Assembly )


9.
 Alternator lower bracket

REMOVAL SERVICE POINTS

<<A>> ALTERNATOR ASSEMBLY REMOVAL
Remove the alternator assembly to the upside.

<<B>> A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL
1.Remove the A/C compressor and clutch assembly together with the hose from the bracket.
2.Tie the removed A/C compressor and clutch assembly with a string at a position where they will not interfere with the removal and installation of the alternator assembly.
