REMOVAL AND INSTALLATION


warning For removal and installation of the passenger’s side air bag module, always observe the service procedures described in GROUP 52B, Driver’s Air Bag Module to Passenger’s (Front) Air Bag Module .
Pre-removal and Post-installation Operation
  • Refrigerant draining and Refilling (Refer to Charging and Discharging ).
  • Engine coolant replacement (Refer to GROUP 14, On-vehicle Service <4B1, 4J1>, <4N1>).
  • Dash panel heat protector (Refer to GROUP 42A, Loose Panel ).

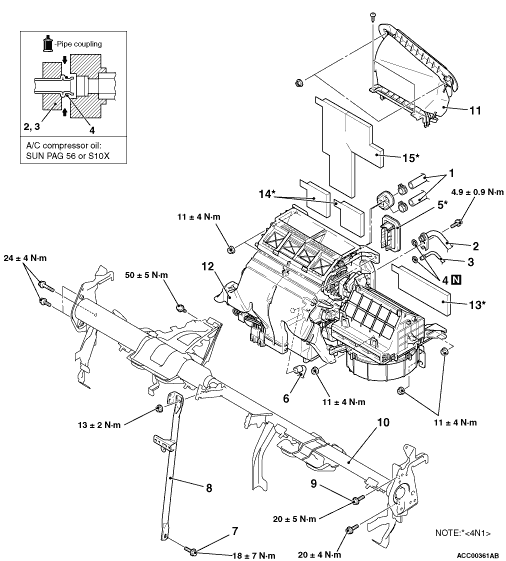

Removal steps


1.
 Heater piping hose connection
<<A>>
2.
 A/C compressor suction hose connection
<<A>>
3.
 A/C condenser outlet pipe connection


4.
 O-ring


5.
 Expansion valve cover <4N1>


6.
 A/C evaporator drain hose


·
 Instrument panel removal and Installation (Refer to GROUP 52A, Instrument Panel ).


·
 Instrument panel wiring harness connector disconnection


7.
 Earth bolt


8.
 Centre flame assembly


9.
 Earth bolt


10.
 Front deck crossmember


11.
 Heater air intake duct


12.
 Heater assembly


13.
 Felt A <4N1>


14.
 Felt B <4N1>


15.
 Felt C <4N1>

REMOVAL SERVICE POINTS

<<A>> A/C COMPRESSOR SUCTION HOSE AND A/C CONDENSER OUTLET PIPE DISCONNECTION
caution As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
